GW Instek

Med GW Instek tilbyder vi en række profesionelle Laboratorie strømforsyninger til ​budgetpriser.

Download PDF shortform katalog her

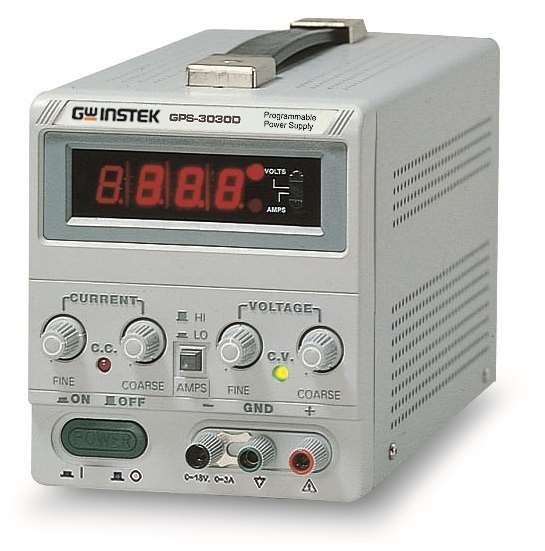

Linær DC powersupply

  • DC spændingsområder: 0-18V til 0-340V
  • DC strømområde: 0-1A og 0-5A
  • Max power område: 54W til 90W
  • Modeller:​ GPS-3030, GPS-1830D, GPS-1850D, GPS-3030D, GPS-3030DD
  • Priser fra kr. 1.230 eksl. moms

PDF GPS serien

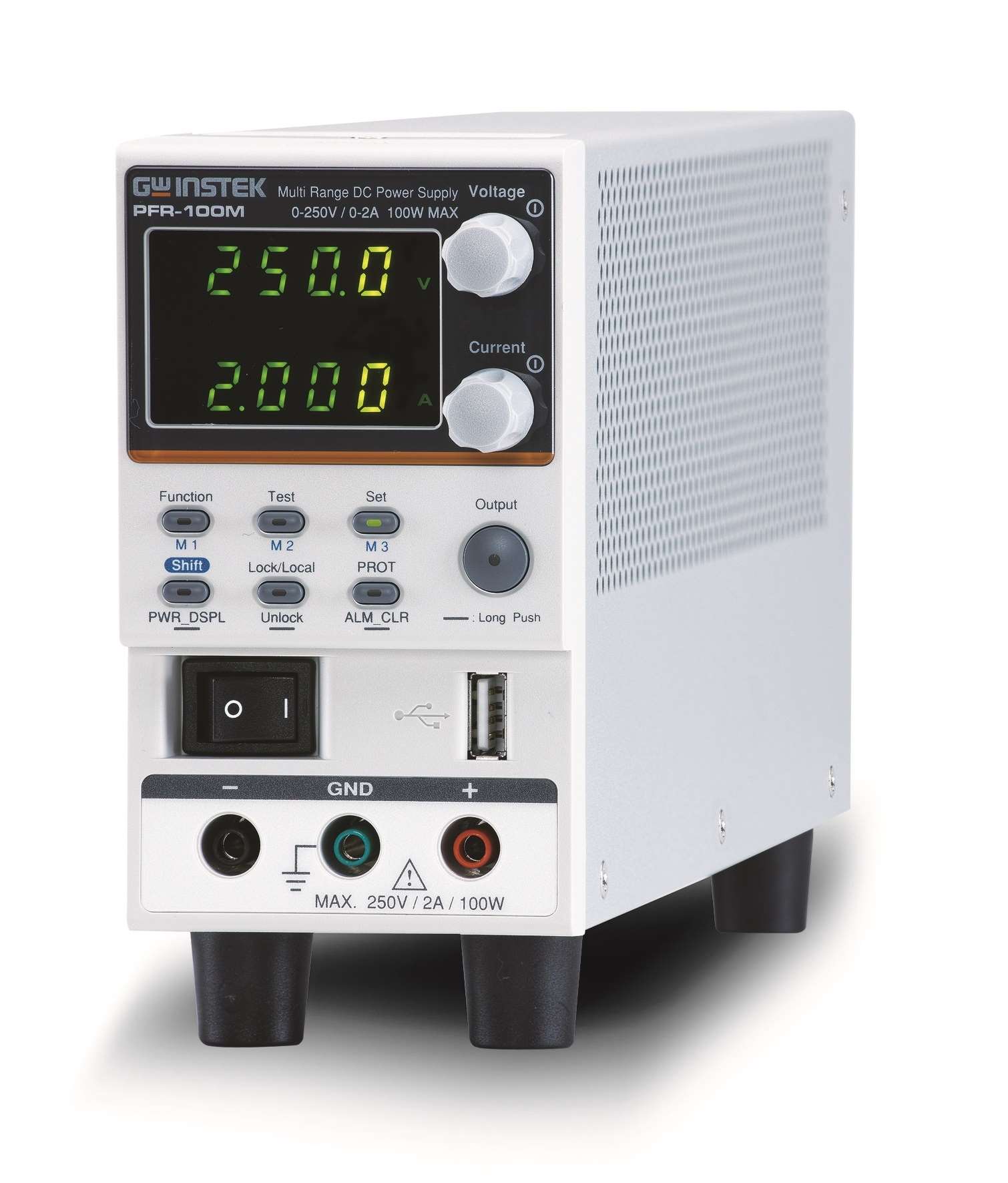

Programmerbar switching DC powersupply

  • DC spændingsområde: 50V , 250V
  • DC strømområde: 10A, 2A
  • Max powerområde: 100W
  • Interface: USB, RS-232/RS-485; LAN/GPIB(Optional)
  • Modeller:​ PFR-100L, PFR-100M
  • Priser fra kr. 4.650 eksl. moms

PDF PFR serien

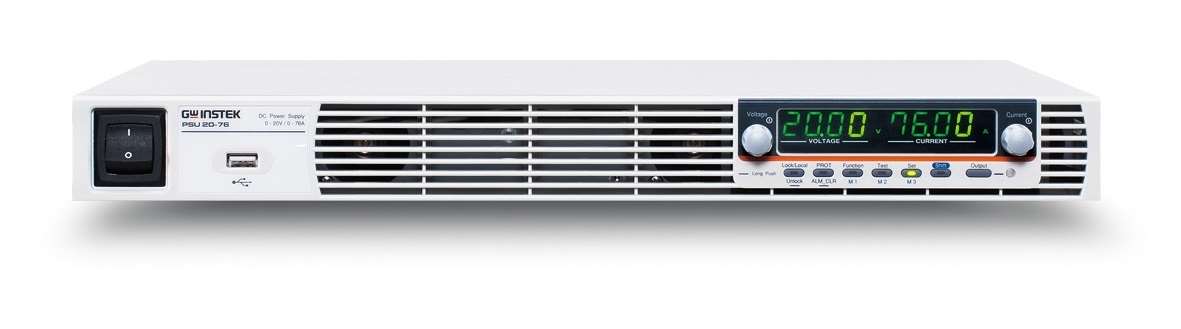

Programmerbar switching DC power supply

  • DC V output: 6V / 12.5V / 20V / 40V / 60V/ 100V/ 150V/ 300V/ 400V/ 600V
  • DC I output: 200A, 120A, 76A, 38A, 25A, 15A, 10A, 5A, 3.8A, 2.6A
  • Power output:1200W - 1560W
  • Konstant spænding- eller konstant strøm drif
  • indstillelig ristime for spænding og strøm
  • 1U height and 19”Rack Mount Size
  • Bleeder kontrol
  • Beskyttelse: OVP, OCP, OHP,UVL, AC Fail, FAN Fail
  • Standard: USB, LAN, RS-232, RS-485, analog kontrol
  • Option: GPIB、isolated analog interface (voltage Kontrol/ current kontrol)​
  • Modeller: PSU 6-200, PSU 12.5-120, PSU 20-76, PSU 40-38, PSU 60-25, PSU 100-15, PSU 150-10, PSU 300-5, PSU 400-3.8, PSU 600-2.6

PDF PSU serien

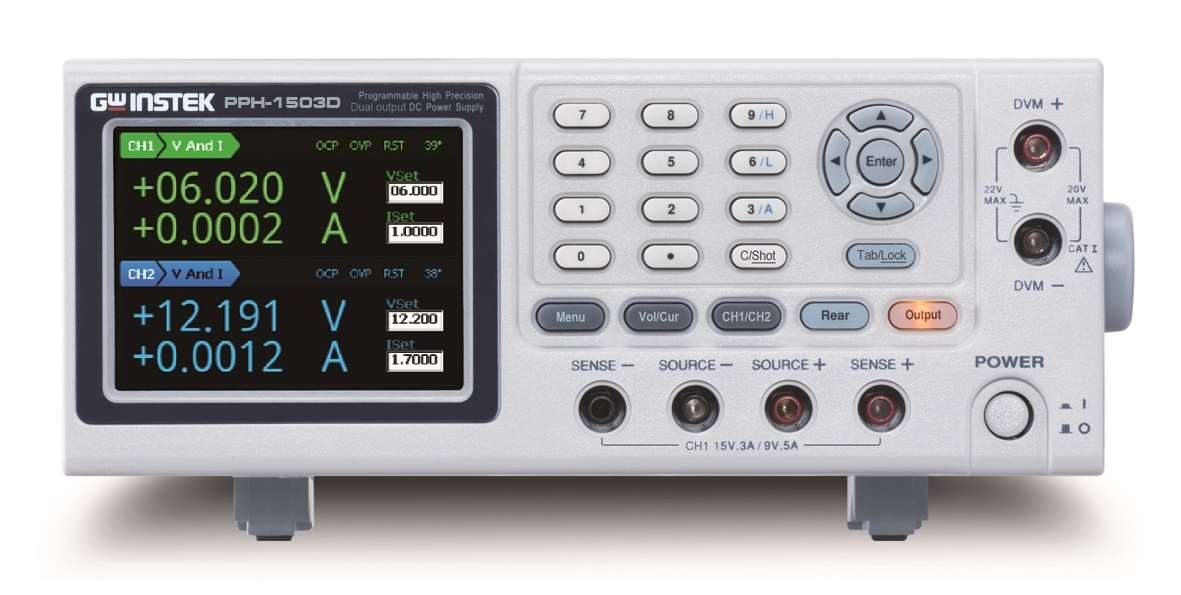

Programmerbar DC powersupply

  • 2 kanaler DC output
  • CH1: 45W (0-15V/0-3A eller 0-9V/0-5A)
  • CH2: 18W (0-12V/0-1,5A)
  • 3,5 “ TFT farvedisplay
  • Indbygget digitalt voltmeter
  • Høj måleopløsning (1mV/0,1uA ved 5mA område)
  • Sink funktion (max. 3,5A)
  • Pulse current måling
  • Sequence funktion (sekventiel power output)
  • OVP, OCP, OTP og temperatur display for heat sink
  • USB- og ethernet interface
  • 5 grupper for save/recall
  • Ekstern relækontrol​
  • Modeller: PPH-1503D & PPH-1506D

PDF PPH serien

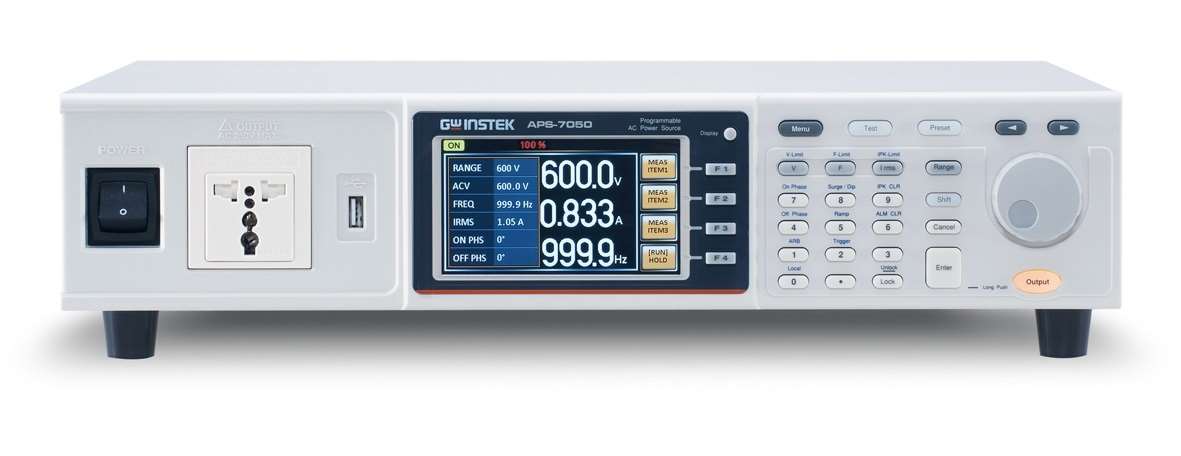

Programmerbar AC powersupply

  • AC spændingsområde: 0~155Vrms, 0~310Vrms
  • AC strømområde: 4.2A/2.1A(APS-7050), 8.4A/4.2A (APS-7100), 16.8A/8.4A (APS-7200), 25.2A/12.6A (APS-7300)
  • Max. Power Range: 500VA, 1kVA, 2kVA, 3kVA
  • Interface: USB Host, LAN, GPIB(Opt), RS232/USB CDC(Opt)
  • Modeller: APS-7050, APS-7100, APS-7200, APS-7300

PDF APS-7000 serien

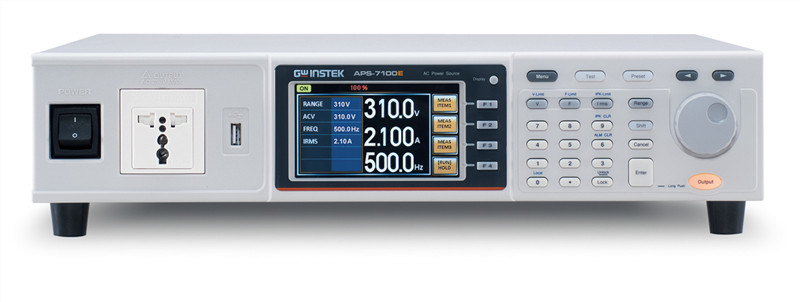

AC powersupply

  • AC spændingsområde Range: 0~155Vrms, 0~310Vrms
  • AC Strømområde Range: 4.2A/2.1A(APS-7050E), 8.4A/4.2A (APS-7100E)
  • Max. Power Range: 500VA, 1kVA
  • Modeller: APS-7100E, APS-7050E

PDF APS-7000E serien

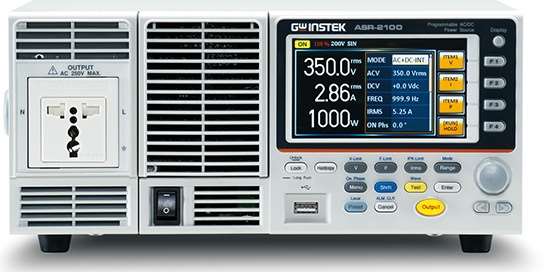

AC + DC powersupply

  • Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V
  • Output Frequency up to 999.9 Hz
  • DC Output (100% of Rated Power)
  • Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
  • Voltage and Current Harmonic Analysis(THDv, THDi)
  • Remote Sensing Capability
  • OVP, OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm.
  • Support Arbitrary Waveform Function
  • Output Capacity: 500VA/ 1000VA
  • Customized Phase Angle for Output On/Off
  • Sequence and Simulation Function(up to 10 sets)
  • Interface: USB, LAN, RS-232(std.); GPIB(opt.)
  • Built-in External Control I/O and External Signal Input
  • Built-in Output Relay Control
  • Memory Function (up to 10 sets)
  • Built-in Web Server

PDF ASR-2000

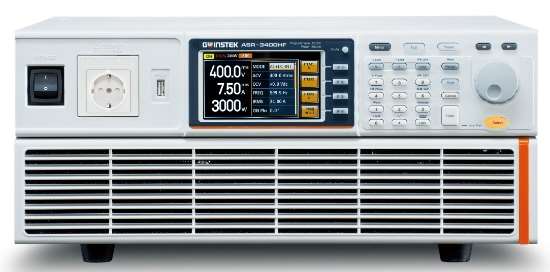

AC + DC powersupply

  • Output Rating: AC 0 – 400 Vrms, DC 0 - ± 570 V
  • Output Frequency up to 999.9 Hz (ASR-3400HF up to 5000Hz)
  • DC Output (100% of Rated Power)
  • Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
  • Voltage and Current Harmonic Analysis(THDv, THDi)
  • Remote Sensing Capability
  • OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm
  • Support Arbitrary Waveform Function
  • Output Capacity: 2kVA/ 3kVA/4kVA
  • Customized Phase Angle for Output On/Off
  • Sequence and Simulation Function(up to 10 sets)
  • Interface(std): USB, LAN, RS-232, GPIB
  • Built-in External Control I/O and External Signal Input
  • Built-in Output Relay Control
  • Memory Function (up to 10 sets)
  • Built-in Web Server​

PDF ASR-3000

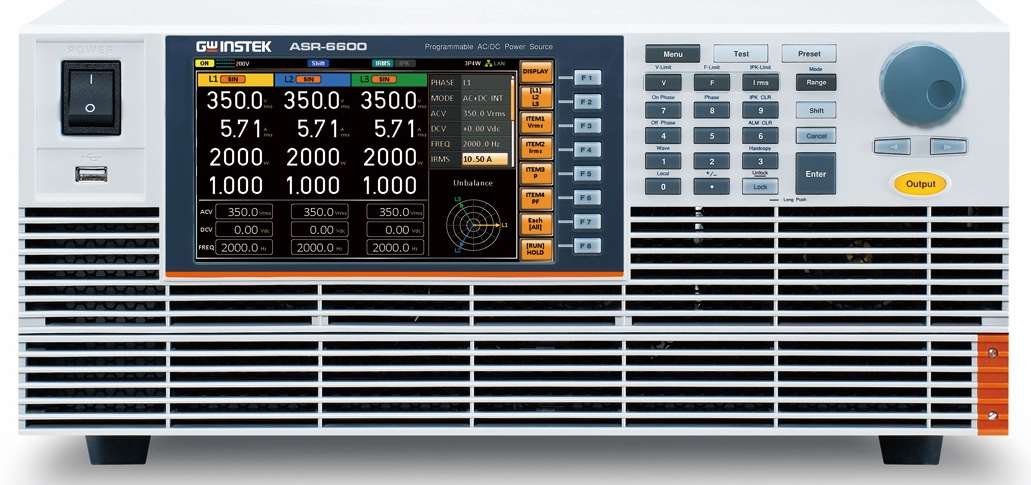

AC + DC powersupply

  • Adopts third-generation semiconductor silicon carbide (SiC) technology to create a 4U 6kVA high-performance AC/DC power source with high power density
  • AC input supports single-phase and three-phase, phase voltage 200V to 240V±10% (Delta or Y connection)
  • 10 output modes: including external input signal frequency and mains synchronization (SYNC), external voltage controlled internal amplifier output (VCA)
  • Multi-channel output function
  • Supports 1P2W, 1P3W, 3P4W output
  • AC maximum output phase voltage: 350Vrms line voltage: 700Vrms
  • AC balanced and unbalanced three-phase, phase loss output functions
  • Programmable output impedance adjustment
  • Dual-channel voltage/current output monitoring function
  • Voltage output rise time can be adjusted in three ranges
  • Supports sequence editing and emulation output mode
  • Powerful arbitrary waveform editing and output function, capable of editing and outputting tens of thousands of waveforms
  • Advanced web server control to support data acquisition function
  • 100th order harmonic measurement function
  • Supports external parallel connection to increase output power
  • Standard interfaces: RS-232C, USB, LAN
  • Optional interfaces: CAN Bus, DeviceNet, GPIB​

PDF-ASR-6000
