Testec Differentialprober

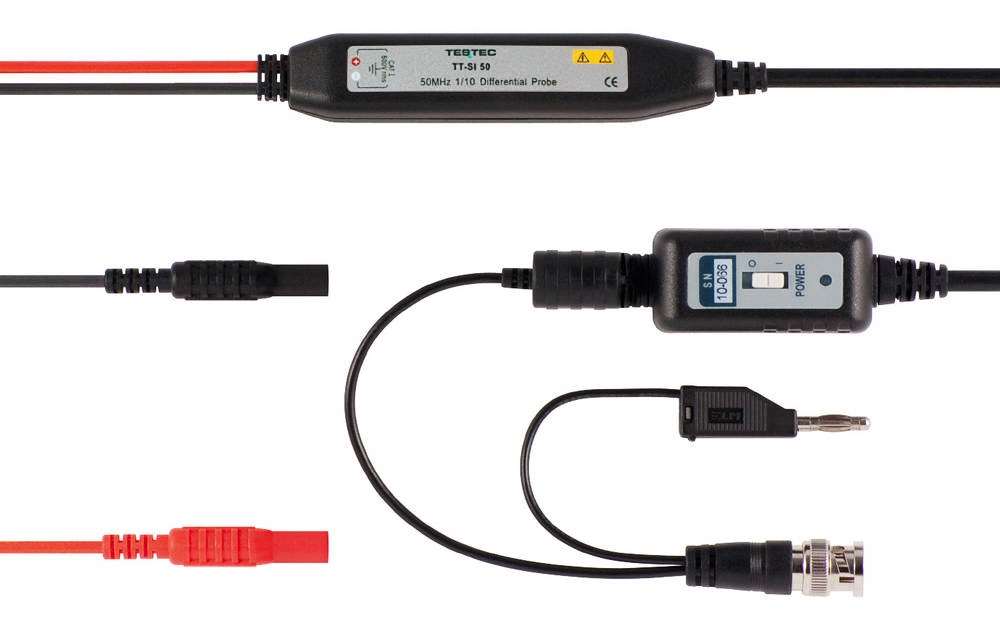

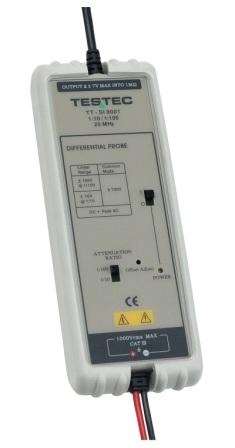

Testec Model TT-SI 50 | 1:10

• Bandwidth 50 MHz

• Attenuation Ratio x10

• DC-Accuracy ±1 %

• Input Impedance 1.6 MΩ, 7 pF

• Measurement Category CAT I

• Input Voltage


Differential Mode ±70 V (DC + peak AC) or 70 Vrms

• Input Voltage


Common Mode ±700 V (DC + peak AC) or 600 Vrms

• Input Voltage


Absolute max. Voltage ±700 V (DC + peak AC) or 600 Vrms

• Power requirements Battery pack (4x AA Cells)


or Main Adaptors 6 VDC / 90 mA

or regulated 9 VDC / 70 mA

• Dimensions (L x W x H) 111 mm x 22 mm x 14 mm

• Cable BNC Cable 125 cm

• Input Leads 50 cm

• Weight 300 g Hardcase included


​​Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

Testec Model TT-SI 51 | 1:100

• Bandwidth 50 MHz

• Attenuation Ratio x100

• DC-Accuracy ±1 %

• Input Impedance 4 MΩ, 7 pF

• Measurement Category CAT II

• Input Voltage


Differential Mode ±700 V (DC + peak AC) or 600 Vrms

• Input Voltage


Common Mode ±1400 V (DC + peak AC) or 600 Vrms

• Input Voltage


Absolute max. Voltage ±1400 V (DC + peak AC) or 600 Vrms

• Power requirements Battery pack (4x AA Cells)


or Main Adaptors

6 VDC / 90 mA

or regulated 9 VDC / 70 mA

• Dimensions (L x W x H) 111 mm x 22 mm x 14 mm

• Cable BNC Cable 125 cm

• Input Leads 50 cm

• Weight 300 g Hardcase included​


Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

Testec ​Model TT-HVP 08 | 1000:1

• Attenuation Ratio x1000

• Accuracy

VDC ±2 % [+5 kV]

±3 % [+5 kV-8 kV]

VAC ±3 % @ 1 kHz

• Input Impedance 100 MΩ, 3 pF

• Bandwidth 40 MHz (-3 dB)

• Rise Time 9 ns

• Cable Length 2,0 m

• Compensation Range 10..30 pF

• Max. Input Voltage DC 8 kV, AC 6 kVrms, PEAK 16 kV

• Dimensions (L x W x H) 220 mm x 50 mm x 50 mm

• IEC1010 CAT I Pollution Degree 2


​Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

Testec Model TT-HVP 15B | 1000:1

• Attenuation Ratio x1000

• Accuracy


VDC ±6 %

VAC ±6 % @ 1 kHz

• Input Impedance 100 MΩ, 3 pF

• Bandwidth 40 MHz (-3 dB)

• Rise Time 8,8 ns

• Cable Length 2,0 m

• Compensation Range 15 - 30 pF

• Max. Input Voltage DC 15 kV, AC 10 kVrms, PEAK 30 kV

• Dimensions (L x W x H) 350 mm x 75 mm x 75 mm

• IEC1010 CAT 0 Pollution Degree 2​


Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

Testec Model TT-HVP 2739 | 1000:1

• Attenuation Ratio x1000

• Accuracy


VDC ±3 %

VAC ±6 % @ 1 kHz

• Input Impedance 900 MΩ, 1 pF

• Bandwidth DC ~220 MHz

• Rise Time 1,6 ns

• Cable Length 2,0 m

• Compensation Range 15..35 pF

• Max. Input Voltage DC+AC peak 39 kV, AC 27 kVrms

• Dimensions (L x W x H) 320 mm x 80 mm x 80 mm

• IEC1010 CAT I Pollution Degree 2


​​Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

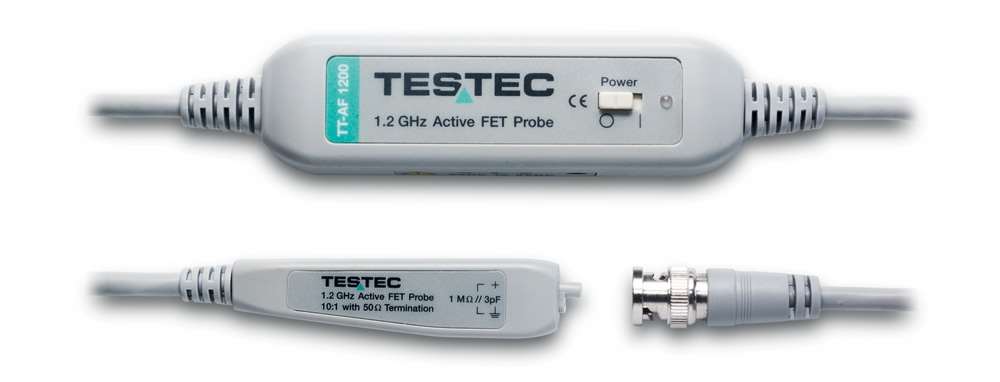

​Testec Model TT-AF 1200 | 1:10

• Bandwidth DC to 1.2 GHz (-3 dB)

• Attenuation Ratio x10

• Accuracy ±2 %

• Input Impedance 1 MΩ, 3 pF

• Rise Time 291 ps

• Input Voltage

±15 V (DC+peak AC)

±40 V (DC+peak AC)

• absolute maximum voltage


Output Voltage - Swing ±1,5 V (into 50 Ω load)

Output Voltage - Offset (typical) <±5 mV

Adjustable output offset range -28 mV to +28 mV

Output Voltage - Noise (typical) 0,9 mVrms

• Output Impedance (typical) 50 Ω (for using 50 Ω input system oscilloscope)

• Ambient Operating Temperature -10 °C to 40 °C

• Ambient Storage Temperature -30 °C to 70 °C

• Ambient Operating Humidity 0 % to 85 % humidity

• Ambient Storage Humidity 0 % to 85 % humidity

• Power Requirements

Standard 9 V battery or mains adapter

5 VDC / 200 mA or 9 VDC / 150 mA

• Power Requirements


Optional power leads (USB, Probus® or Lemo®)

• Length of BNC Cable 120 cm

• Weight 200 g

• Dimensions (L x W x H) 83 mm x 19 mm x 14 mm


​​Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

Testec Model TT-CC 220

• Measurement Ranges 100 mV/A - 10 mV/A

• Current 10 A - 100 A

• DC Measurement Accuracy

• ±3% ±50 mA @ 100 mV/A

• ±4% ±50 mA @ 10 mV/A

• ±15% max @ 10 mV/A

• Bandwidth DC - 300 kHz

• Rise and Fall Time 1.2 µs

• Max. Working Voltage


600 VAC RMS CAT II /

300 VAC RMS CAT III

• Max. Floating Voltage


600 VAC RMS CAT II /

300 VAC RMS CAT III

• Battery-Typ 9 V Alkaline (NEDA 1604, IEC 6LR61)

• Battery Life 8 h

• Operating Temperature 0 bis 50 °C

• Storage Temperature -20 bis 80 °C

• Max. Operating Humidity


0 bis 40 °C, 95 % humidity

40 bis 50 °C, 45 % humidity

• Pollution Degree 2

• Maximum Conductor 11 mm

• Dimensions (L x B x H) 265 mm x 80 mm x 36 mm

• Weight 260 g

• Accessories Hardcase and Power Supply included​


Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

Testec Model TT-CC 550

• Measurement Ranges 200 mV/A - 20 mV/A

• Current 5 A - 50 A

• DC Measurement Accuracy ±3% ±30 mA @ 200 mV/A

• ±4% ±300 mA @ 20 mV/A

• ±15% @ 200 mV/A

• Bandwidth DC - 500 kHz

• Rise and Fall Time 0.7 µs

• Max. Working Voltage


600 VAC RMS CAT II /

300 VAC RMS CAT III

• Max. Floating Voltage


600 VAC RMS CAT II /

300 VAC RMS CAT III

• Battery-Typ 9 V Alkaline (NEDA 1604, IEC 6LR61)

• Battery Life 8 h

• Operating Temperature 0 bis 50 °C

• Storage Temperature -20 bis 80 °C

• Max. Operating Humidity


0 bis 40 °C, 95 % humidity

40 bis 50 °C, 45 % humidity

• Pollution Degree 2

• Maximum Conductor 11 mm

• Dimensions (L x B x H) 265 mm x 80 mm x 36 mm

• Weight 260 g

• Accessories Hardcase and Power Supply included​


Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

Testec Model TT-CC 770

• Measurement Ranges 500 mV/A - 50 mV/A

• Current 7 A - 70 A

• DC Measurement Accuracy

• ±3% ±20 mA @ 500 mV/A

• ±4% ±200 mA @ 50 mV/A

• ±15% @ 50 mV/A

• Bandwidth DC - 1 MHz

• Rise and Fall Time 0.35 µs

• Max. Working Voltage


600 VAC RMS CAT II /

300 VAC RMS CAT III

• Max. Floating Voltage


600 VAC RMS CAT II /

300 VAC RMS CAT III

• Battery-Typ 9 V Alkaline (NEDA 1604, IEC 6LR61)

• Battery Life 6 h

• Operating Temperature 0 bis 50 °C

• Storage Temperature -20 bis 80 °C

• Max. Operating Humidity


0 bis 40 °C, 95 % humidity

40 bis 50 °C, 45 % humidity

• Pollution Degree 2

• Maximum Conductor 10.3 mm

• Dimensions (L x B x H) 262 mm x 80 mm x 36 mm

• Weight 310 g

• Accessories Hardcase and Power Supply included


​​Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk

Testec ​Model TT-CC 990

• Measurement Ranges 1 V/A - 100 mV/A

• Current 4 A - 40 A

• DC Measurement Accuracy

• ±3% ±10 mA @ 1 V/A

• ±4% ±100 mA @ 100 mV/A

• Bandwidth DC - 1.5 MHz

• Rise and Fall Time 0.23 µs

• Max. Working Voltage


600 VAC RMS CAT II /

300 VAC RMS CAT III

• Max. Floating Voltage


600 VAC RMS CAT II /

300 VAC RMS CAT III

• Battery-Typ 9 V Alkaline (NEDA 1604, IEC 6LR61)

• Battery Life 4 h

• Operating Temperature 0 bis 50 °C

• Storage Temperature -20 bis 80 °C

• Max. Operating Humidity


0 bis 40 °C, 95 % humidity

40 bis 50 °C, 45 % humidity

• Pollution Degree 2

• Maximum Conductor 10.3 mm

• Dimensions (L x B x H) 262 mm x 80 mm x 36 mm

• Weight 310 g

• Accessories Hardcase and Power Supply included


​Kontakt:

Niels Brix

T: 43963010

E: nb@metronic.dk
